Ürün Grubu

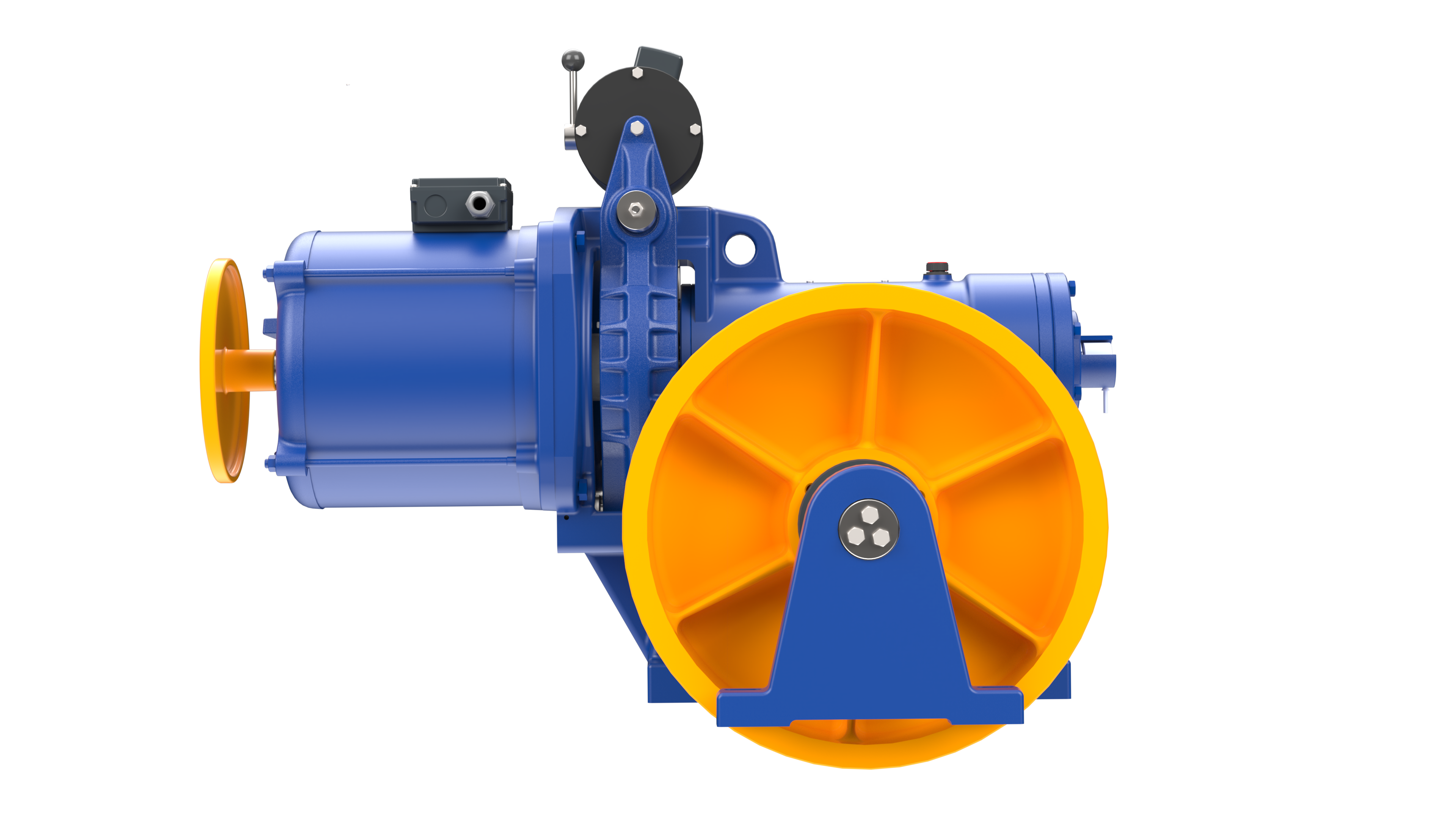

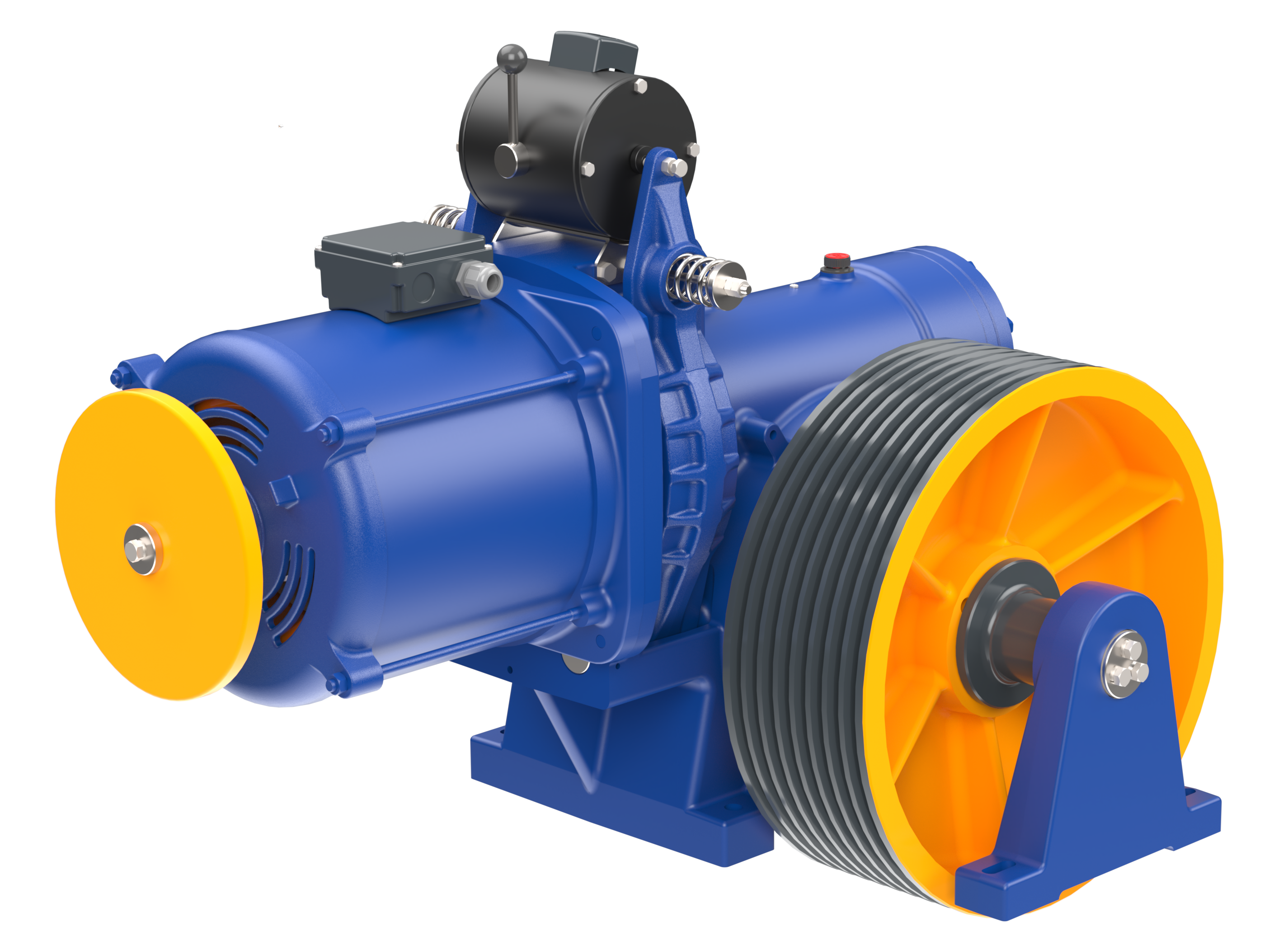

Dişlili Makine Grubu
| Ürün Kodu |
Kabin Hızı (m/s) |
Kapasite (kg) |
Güç | Askı Tipi |
Akım (A) |
Kasnak (mm) |
Tahvil Oranı |
Statik Yük (kg) |
Seyir Mesafesi (m) |
|
| kW | HP | |||||||||
| ZF 112 | 1,00 | 1840 | 11,00 | 1:1 | 23 | 580x9x10 | 46/1 | 12000 | 51 | |
| ZF 112 | 1,20 | 1520 | 11,00 | 1:1 | 23 | 700x7x10 | 46/1 | 12000 | 51 | |
| ZF 112 | 1,60 | 1200 | 11,00 | 1:1 | 23 | 580x6x10 | 55/2 | 12000 | 51 | |
| ZF 112 | 2,00 | 960 | 11,00 | 1:1 | 23 | 700x6x10 | 55/2 | 12000 | 51 | |
| ZF 112 | 2,40 | 750 | 11,00 | 1:1 | 23 | 580x5x10 | 51/3 | 12000 | 51 | |
| ZF 112 | 3,20 | 640 | 11,00 | 1:1 | 23 | 700x5x10 | 51/3 | 12000 | 51 | |
| ZF 112 | 1,00 | 2480 | 15,00 | 1:1 | 31 | 580x8x12 | 46/1 | 12000 | 51 | |
| ZF 112 | 1,20 | 2080 | 15,00 | 1:1 | 31 | 700x10x10 | 46/1 | 12000 | 51 | |
| ZF 112 | 1,60 | 1650 | 15,00 | 1:1 | 31 | 580x8x10 | 55/2 | 12000 | 51 | |
| ZF 112 | 2,00 | 1360 | 15,00 | 1:1 | 31 | 700x6x10 | 55/2 | 12000 | 51 | |
| ZF 112 | 2,40 | 1050 | 15,00 | 1:1 | 31 | 580x6x10 | 51/3 | 12000 | 51 | |
| ZF 112 | 3,20 | 880 | 15,00 | 1:1 | 31 | 700x6x10 | 51/3 | 12000 | 51 | |
| ZF 112 | 1,00 | 3075 | 18,50 | 1:1 | 38,8 | 58010x12 | 46/1 | 12000 | 51 | |
| ZF 112 | 1,20 | 2560 | 18,50 | 1:1 | 38,8 | 700x8x12 | 46/1 | 12000 | 51 | |
| ZF 112 | 1,60 | 2025 | 18,50 | 1:1 | 38,8 | 580x10x10 | 55/2 | 12000 | 51 | |
| ZF 112 | 2,00 | 1680 | 18,50 | 1:1 | 38,8 | 700x8x10 | 55/2 | 12000 | 51 | |
| ZF 112 | 2,40 | 1280 | 18,50 | 1:1 | 38,8 | 580x6x10 | 51/3 | 12000 | 51 | |
| ZF 112 | 3,20 | 1050 | 18,50 | 1:1 | 38,8 | 700x6x10 | 51/3 | 12000 | 51 | |
| ZF 112 | 1,00 | 3680 | 22,00 | 1:1 | 44,2 | 580x9x14 | 46/1 | 12000 | 51 | |
| ZF 112 | 1,20 | 3040 | 22,00 | 1:1 | 44,2 | 700x10x12 | 46/1 | 12000 | 51 | |
| ZF 112 | 1,60 | 2400 | 22,00 | 1:1 | 44,2 | 580x8x12 | 55/2 | 12000 | 51 | |
| ZF 112 | 2,00 | 2000 | 22,00 | 1:1 | 44,2 | 700x9x10 | 55/2 | 12000 | 51 | |
| ZF 112 | 2,40 | 1575 | 22,00 | 1:1 | 44,2 | 580x8x10 | 51/3 | 12000 | 51 | |
| ZF 112 | 3,20 | 1280 | 22,00 | 1:1 | 44,2 | 700x6x10 | 51/3 | 12000 | 51 | |
| Z 112 | 1,00/0,25 | 1725 | 14,00 | 1:1 | 22,5/12,0 | 580x8x10 | 46/1 | 12000 | 33 | |
| Z 112 | 1,00/0,25 | 1950 | 16,00 | 1:1 | 25,0/17,0 | 580x9x10 | 46/1 | 12000 | 33 | |
| Z 112 | 1,00/0,25 | 2475 | 20,00 | 1:1 | 31,0/21,0 | 580x8x12 | 46/1 | 12000 | 33 | |
