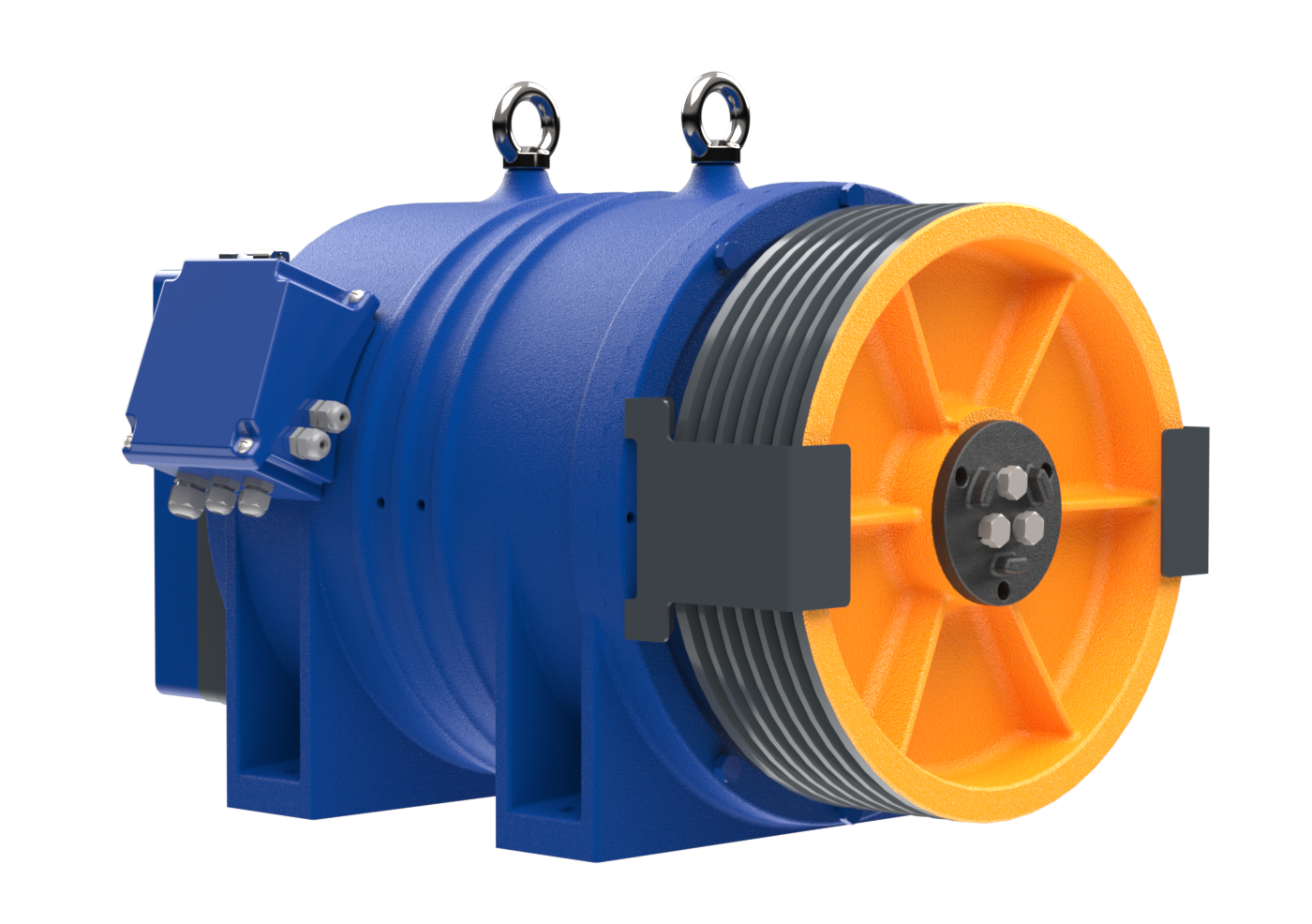

سری AK
| Askı Tipi | 2:1 | Statik Yük | 9000 kg | |||||
| Suspension | Static Load | |||||||
| Tipi Type |
Hız (m/s) Speed (m/s) | Kapasite (kg) Capacity (kg) |
Güç (kw) Power(kw) |
Kasnak Ölçüleri Pulley Dimension |
Akım In | Kutup-Frekans Pole-Frequency |
Devir (rpm) Revolution (rpm) |
Tork (Nm) Torque (Nm) |
| AK 2-4 | 0,63 | 1275 | 4,9 | 360X8X8 | 17,4 | 20P-11,14 | 67 | 704 |
| AK 2-4 | 1,00 | 1275 | 7,8 | 360X8X8 | 23,7 | 20P-17,68 | 106 | 704 |
| AK 2-4 | 1,60 | 1275 | 12,5 | 360X8X8 | 33,2 | 20P-28,29 | 170 | 704 |
| AK 2-4 | 2,00 | 1275 | 15,6 | 360X8X8 | 39,0 | 20P-35,37 | 212 | 704 |
| AK 2-4 | 2,50 | 1275 | 15,6 | 360X8X8 | 48,8 | 20P-44,21 | 265 | 704 |
| AK 2-4 | 0,63 | 1275 | 4,9 | 400x6x10 | 17,41 | 20P-10,03 | 60 | 782 |
| AK 2-4 | 1,00 | 1275 | 7,8 | 400x6x10 | 28 | 20P-15,92 | 95 | 782 |
| AK 2-4 | 1,60 | 1275 | 12,5 | 400x6x10 | 33 | 20P-25,46 | 153 | 782 |
| AK 2-4 | 2,00 | 1275 | 12,5 | 400x6x10 | 41,5 | 20P-31,83 | 191 | 782 |
| AK 2-4 | 2,50 | 1275 | 12,5 | 400x6x10 | 72,3 | 20P-39,79 | 239 | 1226 |
| AK 2-4 | 0,63 | 1600 | 6,2 | 320x10x8 | 21,9 | 20P-12,53 | 75 | 785 |
| AK 2-4 | 1,00 | 1600 | 9,8 | 320x10x8 | 29,7 | 20P-19,89 | 119 | 785 |
| AK 2-4 | 1,60 | 1600 | 15,7 | 320x10x8 | 41,6 | 20P-31,83 | 191 | 785 |
| AK 2-4 | 2,00 | 1600 | 19,6 | 320x10x8 | 49,0 | 20P-39,79 | 239 | 785 |
| AK 2-4 | 2,50 | 1600 | 24,5 | 320x10x8 | 61,2 | 20P-49,74 | 298 | 785 |
| AK 2-4 | 0,63 | 1600 | 6,2 | 360X9X8 | 21,9 | 20P-11,14 | 67 | 883 |
| AK 2-4 | 1,00 | 1600 | 9,8 | 360X9X8 | 29,7 | 20P-17,68 | 106 | 883 |
| AK 2-4 | 1,60 | 1600 | 15,7 | 360X9X8 | 41,6 | 20P-28,29 | 170 | 883 |
| AK 2-4 | 2,00 | 1600 | 19,6 | 360X9X8 | 49,0 | 20P-35,37 | 212 | 883 |
| AK 2-4 | 2,50 | 1600 | 19,6 | 360X9X8 | 61,2 | 20P-44,21 | 265 | 883 |
