MUGEN SERIES
| Askı Tipi | 2:1 | ||||||||
| Statik Yük | 7000 KG | ||||||||
| Suspension | Static Load | ||||||||
| Tipi Type |
Hız (m/s) Speed (m/s) | Kapasite (kg) Capacity (kg) |
Güç (kW) Power(kW) |
Kasnak Ø Pulley Ø | Kasnak Ölçüleri Pulley Dimension |
Akım In | Kutup - Frekans Pole - Frequency |
Devir (rpm) Revolution |
Tork (Nm) Torque |

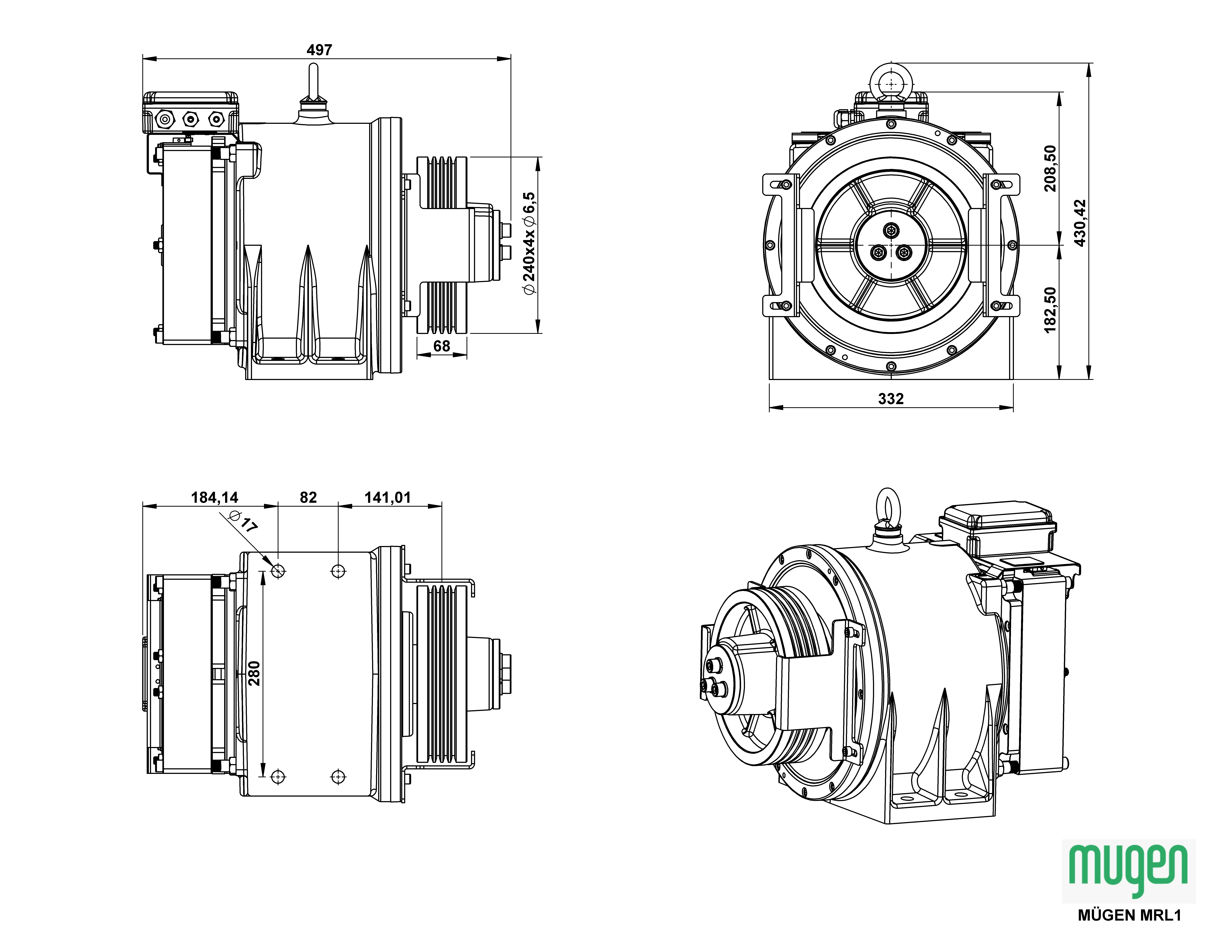

| MUGEN MRL 1 | 0,63 | 320 | 1,2 | 210 | 210x5x6,5 | 3,7 | 20P- 19.16 | 115 | 103 |
| MUGEN MRL 1 | 1,00 | 320 | 2,0 | 210 | 210x5x6,5 | 5,2 | 20P-30.33 | 182 | 103 |
| MUGEN MRL 1 | 1,60 | 320 | 3,1 | 210 | 210x5x6,5 | 7,8 | 20P-48,5 | 291 | 103 |
| MUGEN MRL 1 | 0,63 | 400 | 1,5 | 210 | 210x5x6,5 | 4,7 | 20P- 19.16 | 115 | 129 |
| MUGEN MRL 1 | 1,00 | 400 | 2,4 | 210 | 210x5x6,5 | 6,5 | 20P-30.33 | 182 | 129 |
| MUGEN MRL 1 | 1,60 | 400 | 3,9 | 210 | 210x5x6,5 | 9,8 | 20P-48,5 | 291 | 129 |
